I. Product Description

HY-WR5-4G-E series cellular Routers are highly reliable and secure wireless communications gateway designed for enterprise networking. It supports multi-band connectivity including FDD/TDD LTE, WCDMA and GSM for a wide range of applications and vertical machine-to-machine (M2M) markets. To enhance reliability, HY-WR5-4G-E series cellular Routers series are equipped with dual SIM that supports fail-over and roaming over to ensure uninterrupted connectivity for mission-critical cellular communications.

II. Product features:

l Support cloud platform management and control

l Support web authentication, support  manage business advertising by cloud platform

l Support cloud platform to upgrade router firmware

l Support Signal /Dual SIM (Band)

l Provide a 1* 10 / 100M Ethernet (WAN) interface, which can be connected to xDSL modem / cable modem / Ethernet

l Provide 4 * 10 / 100M adaptive Ethernet (LAN) interfaces and support automatic MDI / mdix

l Provide 1 console port

l Support automatic adjustment of wireless transmission rate

l Support WPA, WPA2, WPA hybrid encryption methods, which can ensure the security of data transmitted in the wireless network

l 2 (4) external  4G antennas

l USB 2.0 interface

l Built in DHCP server

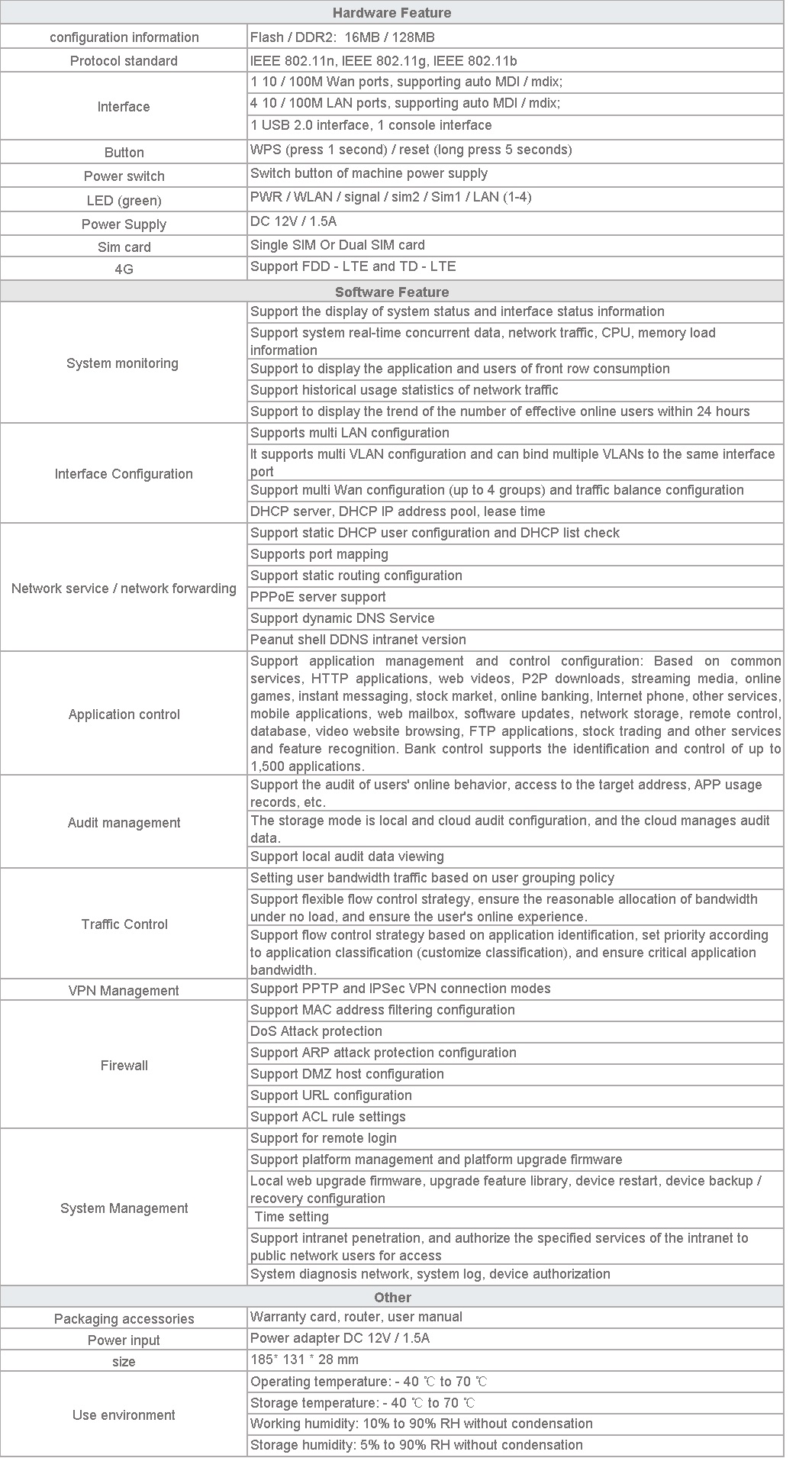

III. Product Specifications:
